Flexible Metal Railing Design for Bridge Projects

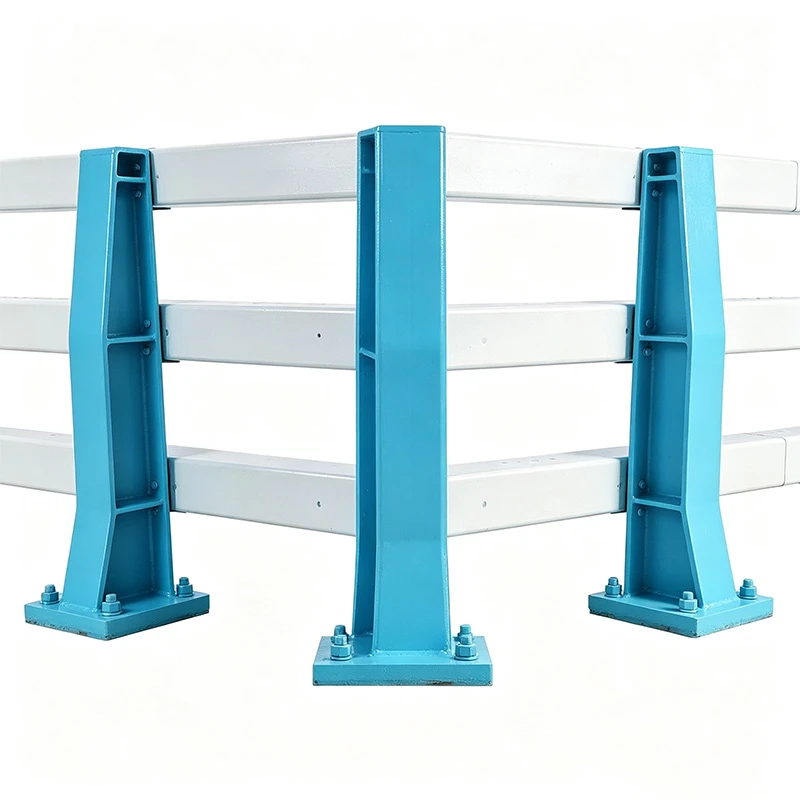

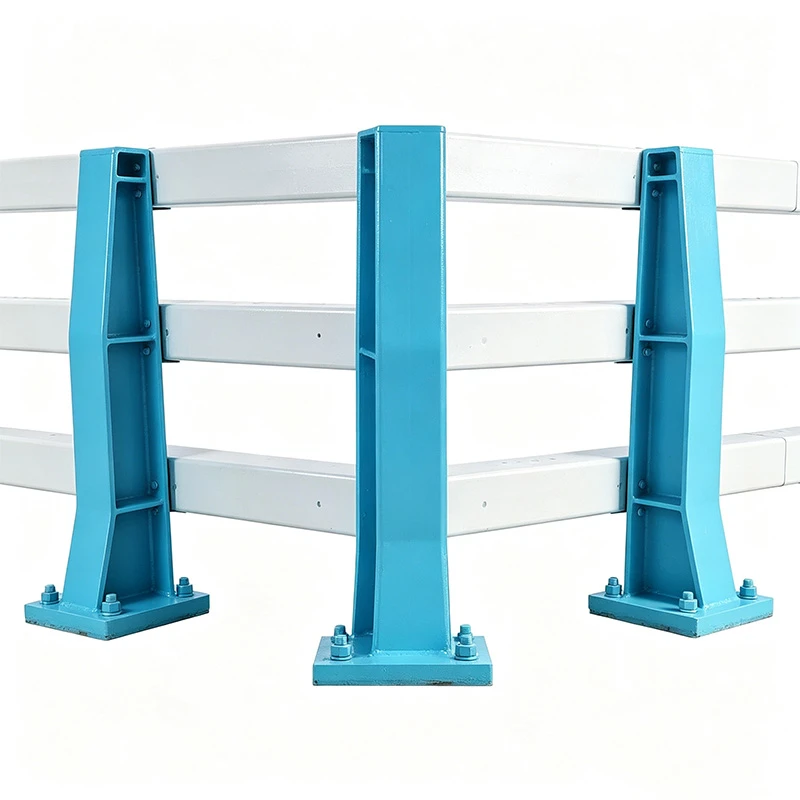

The Metal Beam Bridge Guardrail can be manufactured from steel tubes, square tubes, structural sections, steel plates, or decorative metal panels. It can provide bridge-edge protection, separate pedestrian and vehicle areas, and organize different spaces on the bridge deck.
Available structures include horizontal rails, vertical bars, framed panels, grille sections, and solid or perforated metal panels. Units can be divided according to bridge curvature, longitudinal slope, and irregular installation boundaries.
Compared with products defined by one specific material, this product provides a wider choice of metal materials and component sections. Buyers can balance structural requirements, visual design, surface protection, and project budget within the limits of the approved drawings.
Typical applications include highway bridges, urban bridges, pedestrian bridges, park bridges, industrial area bridges, parking facility connecting bridges, and replacement projects for existing railings.
Dimensions, Materials, and Surface Treatment
The common railing height is 1000–1500 mm, and typical post spacing is 1000–2000 mm.
The main structure can use carbon steel tubes, structural sections, steel plates, or a combination of metal components. Tube wall thickness is commonly 2.0–6.0 mm. Plate thickness should be determined according to its load-bearing position and connection method.
Carbon steel components can be hot-dip galvanized, powder coated, fluorocarbon coated, or protected with a composite coating system. Other metals and finishes can be selected when required by the design.
Decorative panels may use laser cutting or punching to create geometric patterns, project-specific graphics, or open grille structures. Top rails, spacing between bars, colors, and panel designs can all be customized according to the drawings.
Factory Prefabrication and Drawing Coordination
The factory has cutting, welding, powder-coating, and general metal-processing equipment. Production can be organized from overall elevation drawings and typical connection details.
Before manufacturing the Metal Beam Bridge Guardrail, the technical team can check material sections, railing height, post spacing, welds, base plates, anchors, and bridge foundation conditions. Prefabricated unit lengths are selected according to transport restrictions and on-site lifting conditions.
Factory prefabrication reduces on-site welding and coating repair work. It also allows component dimensions and trial assembly relationships to be checked before shipment.
Curved, sloped, irregular, or decorative panel sections may be produced as samples or first pieces. The buyer can confirm the pattern scale, connection details, and surface appearance before mass production. Different bridge sections may be numbered and packed separately for installation in sequence.
Quality Inspection and Delivery
Overall performance is affected by more than tube or plate thickness. Post spacing, weld quality, base plate dimensions, anchors, and the bridge foundation also influence the installed structure. Purchasing documents should therefore include elevations, sections, and typical connection details.
Buyers may visit the factory, inspect the finished goods, or appoint an independent third party. Inspection can focus on material, dimensions, weld appearance, surface coating, and the quantity of accessories.
Customized products normally require about 10–15 days. Large projects can be delivered in batches.
For export, railing units are protected with waterproof materials and separators. Bolts, decorative covers, and small accessories are packed separately. Timber reinforcement and loading records can be used to support receiving checks and transport issue handling.
Product Specifications
|
Parameter |
Available Configuration |
|
Railing Height |
1000–1500 mm |
|
Post Spacing |
1000–2000 mm |
|
Main Material |
Carbon steel tubes, structural sections, steel plates, or combined metal components |
|
Component Thickness |
Tubes commonly 2.0–6.0 mm; plates according to structural position |
|
Surface Treatment |
Galvanizing, powder coating, fluorocarbon coating, or composite coating |
