Multiple Post Sections for Different Road Systems

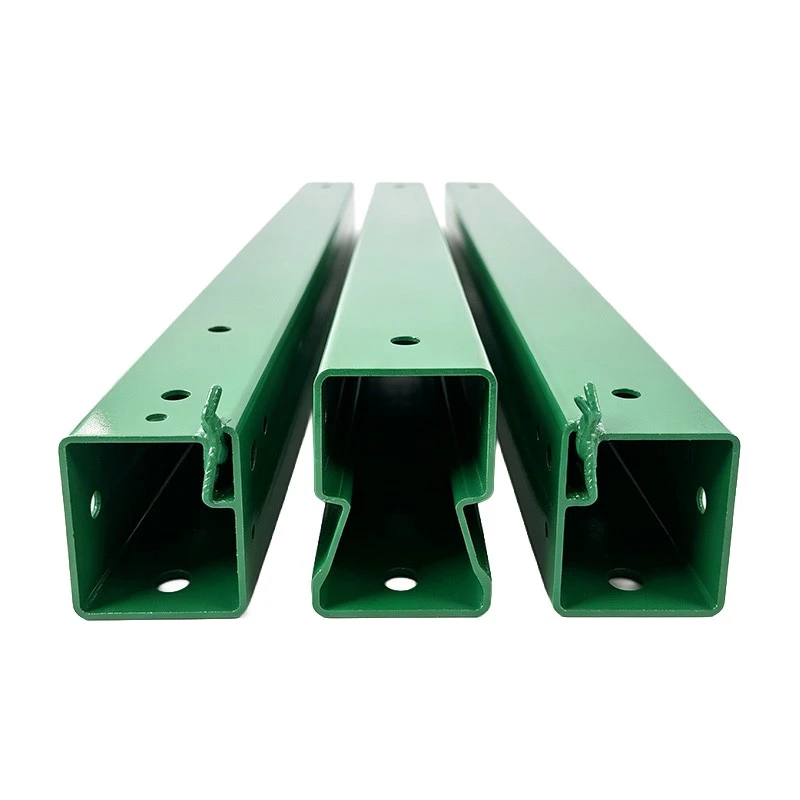

Highway Steel Guardrail Posts are foundation support components used in corrugated roadside barrier systems. Depending on the system design, available post forms can include round tubes, square tubes, C-channel posts, U-channel posts, H-section posts, or another project-specific steel section.

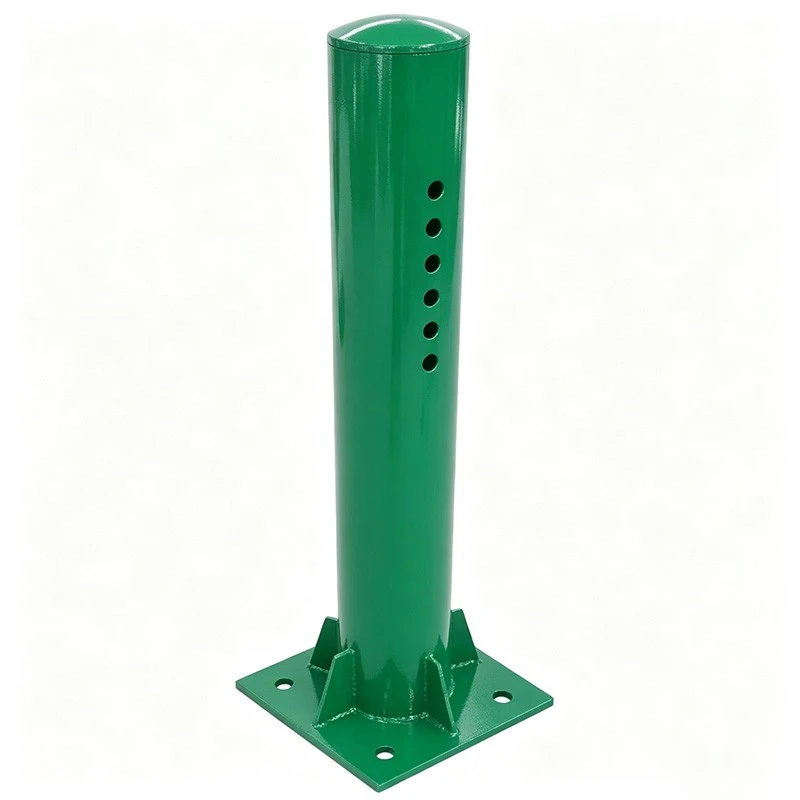

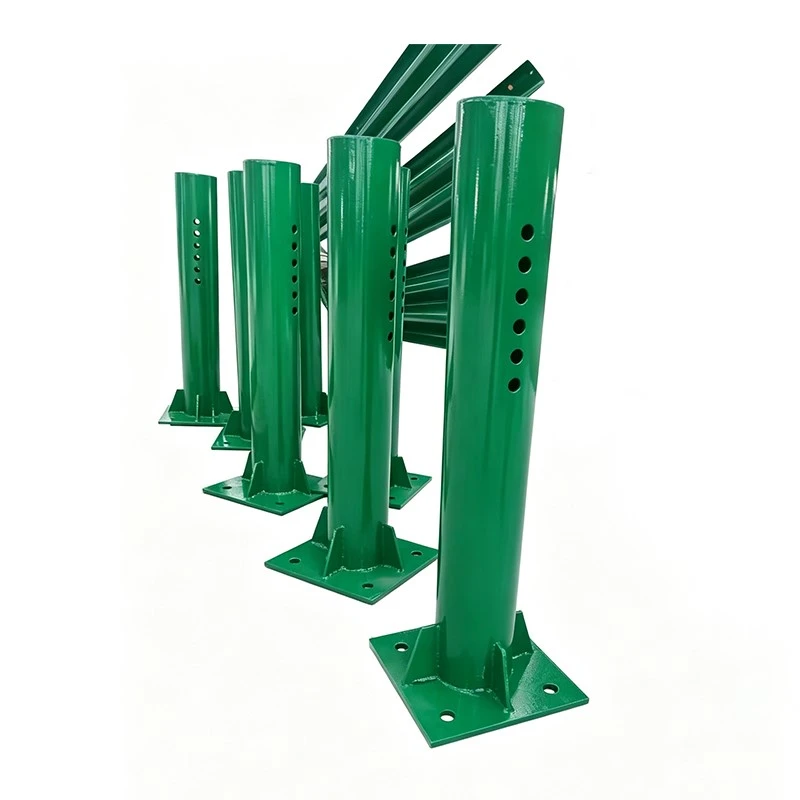

The posts can be installed by driving them into the road foundation, embedding them in prepared bases, securing them through base plates, or using another specified connection method. Their purpose is to maintain the required beam installation height and provide continuous support along the guardrail system.
When a vehicle contacts the barrier, the beams, posts, spacer blocks, and fasteners work together. The steel grade, section, wall thickness, length, post spacing, and foundation conditions therefore affect the working condition of the complete system.
These posts can be used on highways, national and provincial roads, rural roads, industrial park roads, mountain roads, and road safety improvement projects.
Material and Galvanized Protection
The post material is steel, with the specific grade selected according to the project drawing. Hot-dip galvanizing can be applied for outdoor corrosion protection.
The source information states that some European-standard projects use a zinc coating of at least 600 g/m² with reference to EN ISO 1461. The final value should be confirmed in the contract rather than treated as the standard configuration for all products.
For humid, frosty, coastal, or high-rainfall environments, overall hot-dip galvanizing helps reduce direct exposure of the steel substrate. Buyers should compare more than post weight or outside diameter. Wall thickness, effective length, hole positions, coating requirements, post caps, base plates, and connectors should also be checked.
Standard and Non-Standard Production

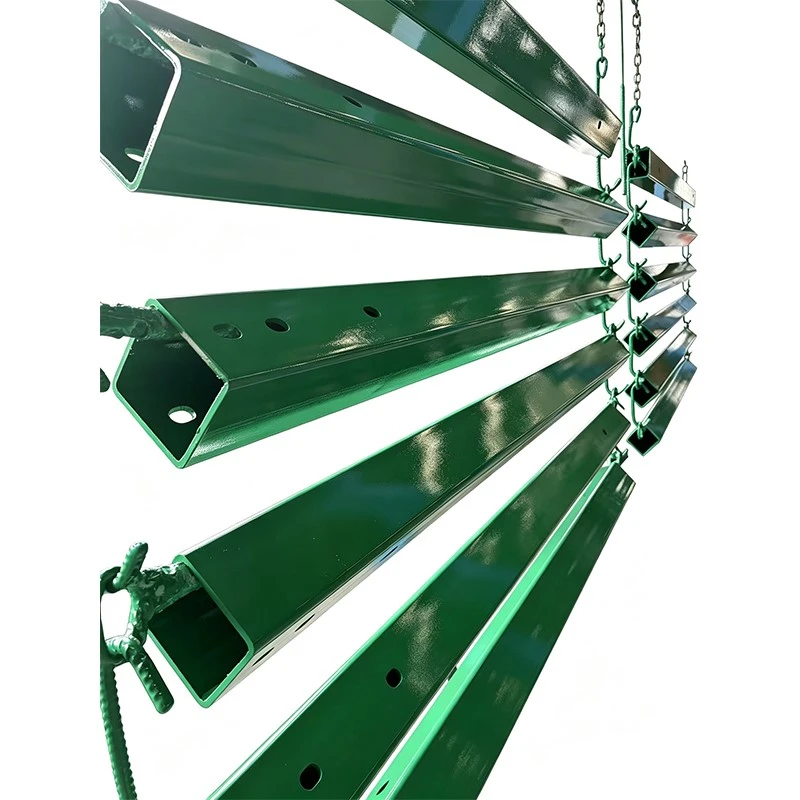

The factory has stamping, cutting, welding, and hot-dip galvanizing equipment. Highway Steel Guardrail Posts can be manufactured in standard or non-standard sizes according to technical drawings.
Before production, the technical team reviews the section, length, wall thickness, hole positions, surface treatment, and installation method. Material, dimensions, and the galvanized coating are included in process inspection.
For key projects, a 100% visual and dimensional inspection before packing can be agreed in the contract. Steel material and coating indicators can be checked through sampling according to the agreed inspection plan.
Buyers may visit the factory or appoint a third-party inspector before shipment. Customized products are produced after drawing review and first-piece confirmation.
Stock Orders, Lead Time, and Packing
Common posts and matching components can support road repair work and small replacement orders. Non-standard lengths, special hole arrangements, and base-plate structures are manufactured after drawing confirmation.
Standard products normally require about 3–5 days. Customized components generally require about 10–15 days. Large orders can be delivered in stages to match the construction schedule.

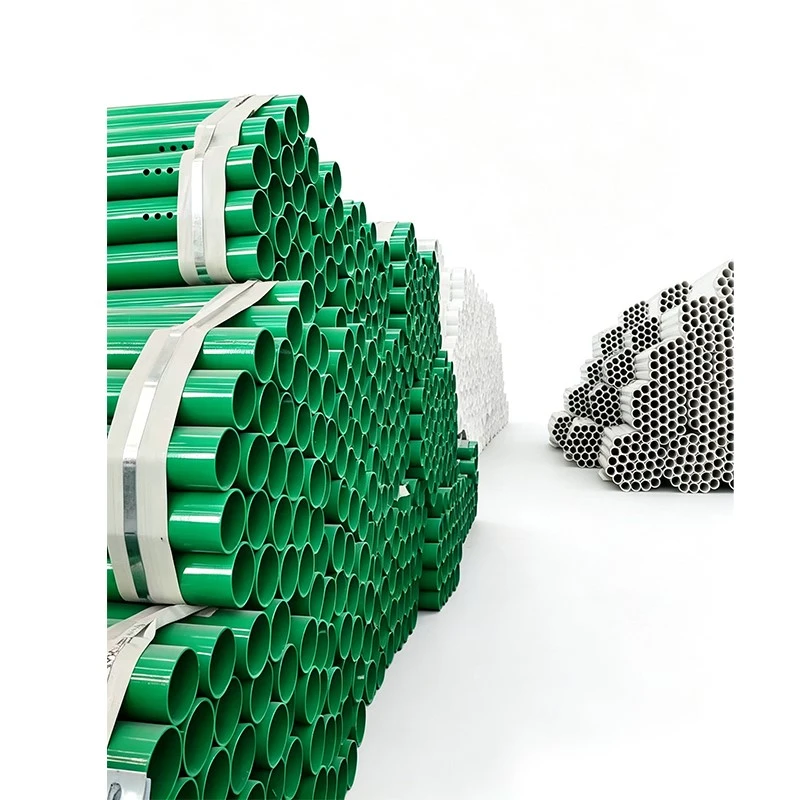

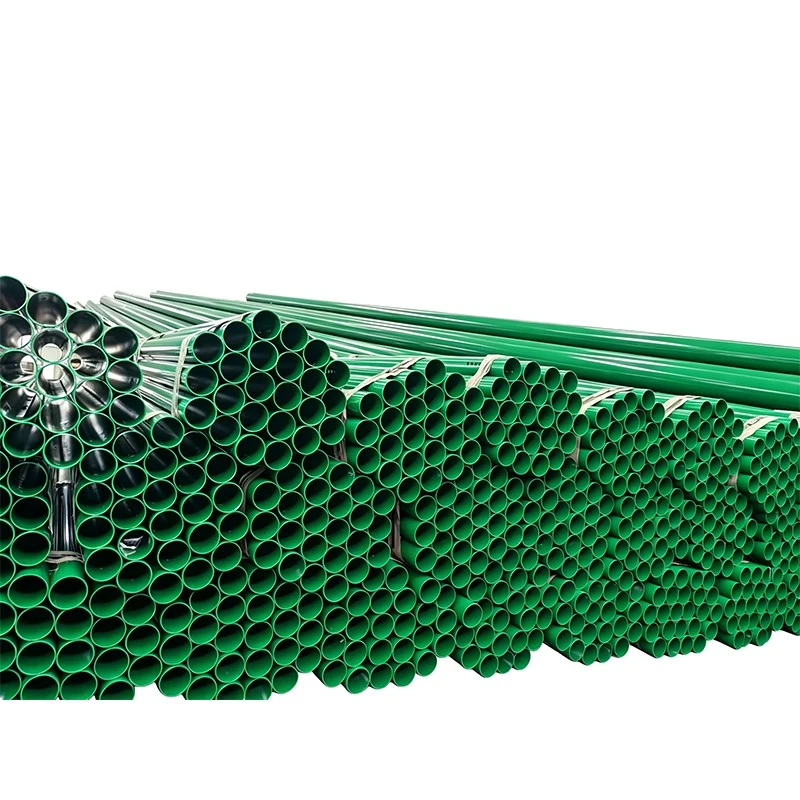

For export, posts are sorted by specification, bundled with steel straps, and protected with waterproof film and separators. Small components are packed separately, while timber supports are used inside the container.
Production and loading photos or videos can be provided. This helps buyers follow the order status and identify the components after arrival.
Product Specifications
|
Parameter |
Available Configuration |
|
Post Forms |
Round, square, C-channel, U-channel, H-section, or custom section |
|
Main Material |
Steel grade according to project drawings |
|
Surface Treatment |
Hot-dip galvanized |
|
Zinc Coating Reference |
European-project information may specify ≥600 g/m² |
|
Suitable Roads |
Highways, national and provincial roads, rural roads, and industrial roads |
