Large-Format Information for High-Speed Roads
A Highway Safety Sign is designed for highway main lines, interchanges, ramp exits, bridges, tunnels, service areas, and toll station zones.
Available categories include highway warning signs, prohibition signs, interchange direction signs, tunnel signs, and exit advance signs. Because vehicles travel at higher speeds on highways, the sign face normally needs clearer information hierarchy and a larger viewing area than signs used on lower-speed roads.

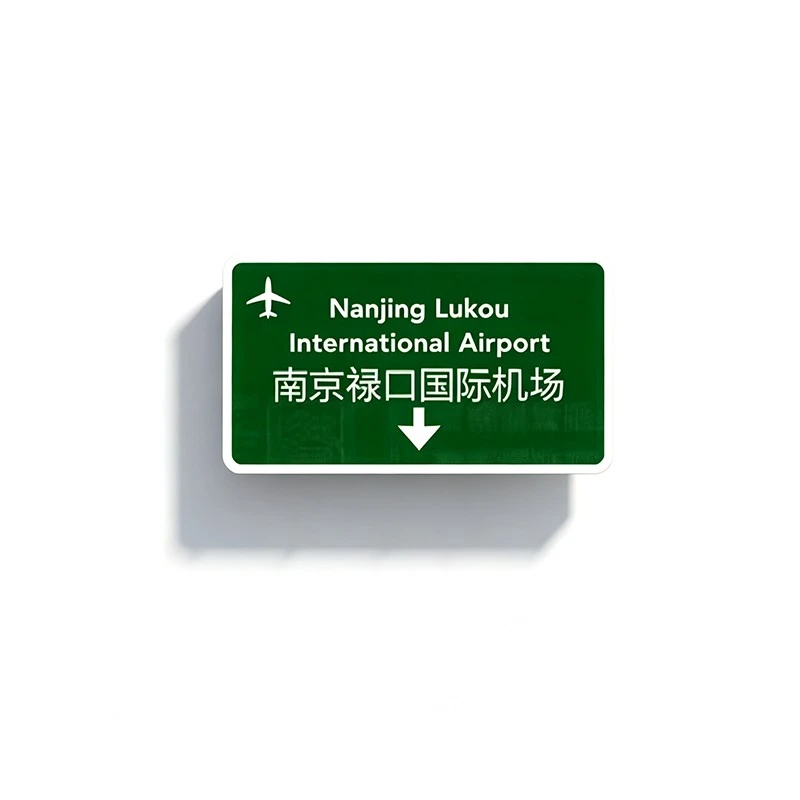

Supported layout options include green backgrounds with white wording, multilingual printing, non-standard arrow designs, inch-based customized sizes, and extra-large sign panels.
The final layout should help drivers identify the route information and complete lane selection from an appropriate reading distance.
Sizes for Prohibition, Warning, and Direction Signs
Common circular prohibition sign diameters are Φ800 mm, Φ1000 mm, and Φ1200 mm.
Triangular warning signs are available with side lengths of 900 mm, 1100 mm, and 1300 mm. Rectangular directional and interchange advance signs can use dimensions of 900 × 1500 mm, 1200 × 1800 mm, 1500 × 2000 mm, and 2000 × 3000 mm.
The 2000 × 3000 mm format can be used for large overhead sign structures. The signs may use a thicker aluminum panel, double-folded edges, and a reflective surface.
The exact aluminum thickness, reflective material grade, edge construction, and support structure must follow the project drawings. The wind resistance of a completed installation cannot be determined from the panel dimensions alone.
Signs, Poles, and Gantry Coordination

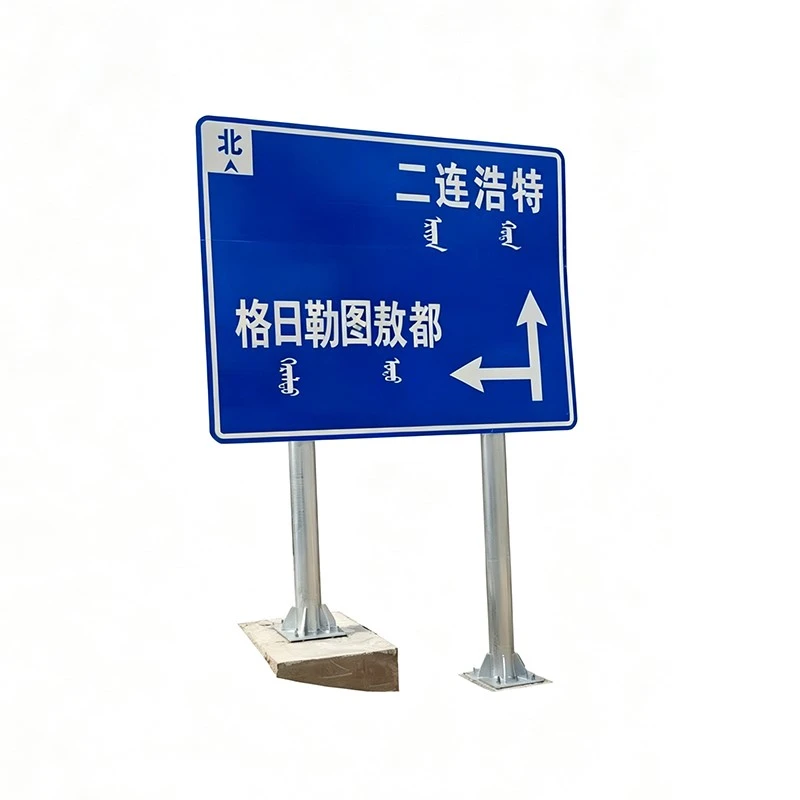

Hongrong Traffic supplies signs, sign poles, and gantry structures. A project order can include panels together with single posts, double posts, F-type cantilever supports, or T-type cantilever supports.
Before production, the technical and export teams can check the wording, language, arrow design, road numbers, panel dimensions, and installation direction. Each sign can be coded according to its installation point.
Large customized panels enter batch production after first-piece confirmation. Supporting steel structures are cut, welded, and hot-dip galvanized according to the approved drawings.
Photos and videos can be provided during production. Buyers may inspect the sign dimensions, surface, folded edges, and matching connection parts.
Reinforced Packing for Large Panels
Packing and container loading directly affect the delivered condition of large highway signs. Protective film and separators can be placed between panels to protect the reflective surface.
Large signs may use pallets, support frames, or timber reinforcement. Connection components are classified and packed separately. A packing list can be prepared according to the construction location.
Large orders can be delivered in stages so that sign panels and support structures arrive according to the foundation and installation schedule.
If panel bending, reflective surface damage, or broken packing is found after delivery, buyers should take photos and videos immediately and retain the shipping documents. Loading records can then be used to support responsibility review.
Product Specifications
|
Parameter |
Common Configuration |
|
Circular Prohibition Signs |
Φ800, Φ1000, and Φ1200 mm |
|
Triangular Warning Signs |
Side lengths of 900, 1100, and 1300 mm |
|
Rectangular Direction Signs |
900 × 1500 mm to 2000 × 3000 mm |
|
Layout Customization |
Inch-based sizes, special arrows, and extra-large panels |
|
Language Support |
English, Arabic, Spanish, French, and other project languages |
