Hot-dip galvanized signposts are widely used in traffic infrastructure construction due to their corrosion resistance and high strength. Different types of signposts are suitable for different scenarios, and proper selection can improve road safety and signage effectiveness. Today, we'll introduce several common types of hot-dip galvanized signposts in detail.

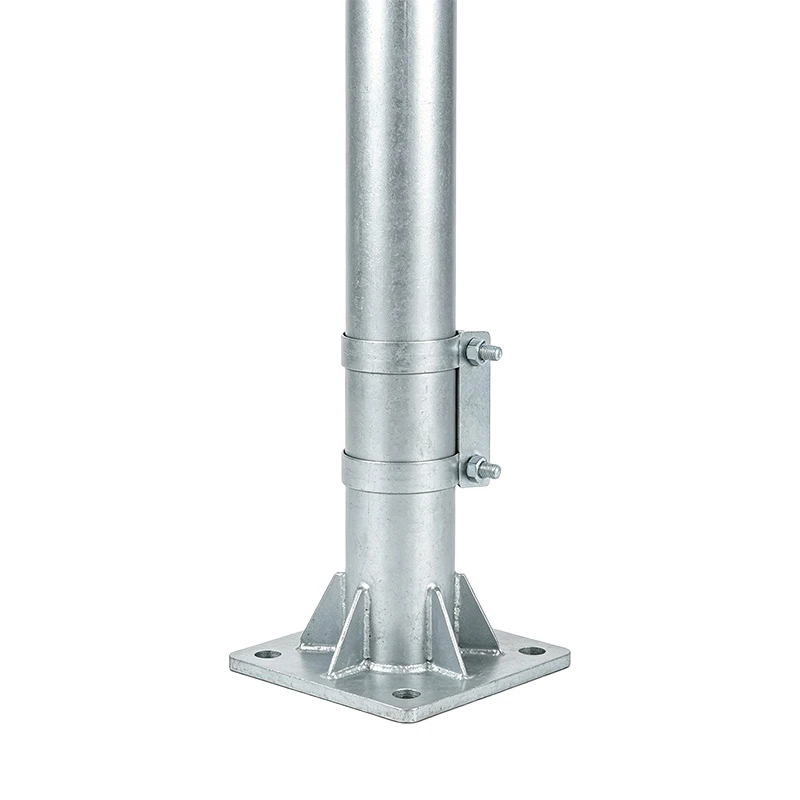

1. Single-Column Signpost: The most basic type of signpost, supported by a single column. It features a simple structure and easy installation, suitable for urban roads, rural roads, and other sections where visibility requirements are low. Single-column signposts are typically 2.5-4 meters high, with a single column diameter of approximately 100-150mm.
2. Double-Column Signpost: Supported by two columns, it offers greater stability. Compared to single-column signposts, it can support larger signboards and is commonly found on highways, bridges, and other scenarios requiring clear signage. Double-column signposts are generally 3-6 meters high, with the column spacing adjusted according to the signboard size, typically within the range of 1.5-2 meters.
3. Cantilever Signposts: These extend the signboard outwards using a cantilever (beam), preventing the post from obstructing the view. Widely used on urban expressways and elevated bridges, they effectively improve the visibility of large vehicles. Cantilever signposts range in length from 1 to 6 meters, with post heights typically between 6 and 12 meters. They require the use of traffic lights or monitoring equipment.
4. Gantry Signposts: These consist of two posts and a top beam forming a "gantry" shape, supporting multiple signboards. Suitable for complex traffic scenarios such as interchanges and large intersections, they can simultaneously display traffic information from multiple directions. Gantry signposts are typically 5-10 meters high, with beam spans designed according to road width, generally 8-15 meters.
5. Attached Signposts: These are directly fixed to structures such as tunnel walls and bridge railings, without occupying road space. Commonly used in urban underpasses and mountain curves, they save road resources. Attached signposts are relatively short, typically only 0.5-1.5 meters in length, and are fixed using expansion bolts or embedded parts.
The design of different types of hot-dip galvanized signposts requires comprehensive consideration of factors such as road grade, traffic volume, and installation environment. It is recommended to consult professional traffic facility manufacturers first when selecting a signpost to ensure the compatibility between the signpost and the signboard and the overall safety. Proper signpost selection not only extends service life but also ensures the clear visibility of traffic signs.
